Flight Control Systems

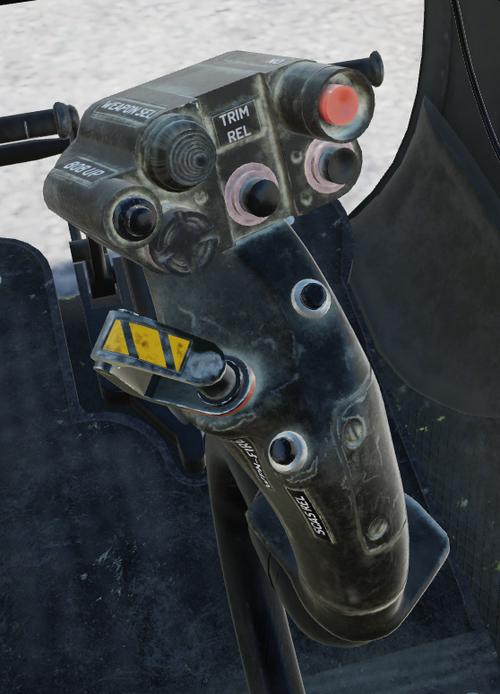

Pilot Cyclic Grip

The Pilot Cyclic is primarily used for controlling the pitch and roll of the helicopter. The Cyclic Grip contains inputs for actioning weapons, making trim inputs and selecting MFD pages.

1. Bob Up/Drop Waypoint Switch
2. Weapon Select Switch
3. (Behind Grip) Optical Display Assembly Switch / ODA
4. Flare Dispense Switch
5. Missile Step Switch
6. Bob Up/Drop Waypoint Switch
7. Weapon Select Switch
8. (Behind Grip) Optical Display Assembly Switch / ODA
9. Flare Dispense Switch
10. Missile Step Switch
11. Trim Release Switch
12. Display Select Switch
13. Missile Activate Switch
14. Weapon Fire Switch
15. SCAS Release Switch
16. ICS/Radio Switch (Trigger)

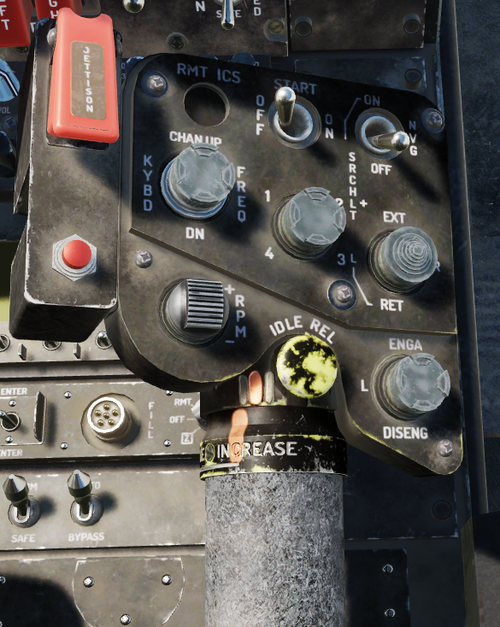

Pilot Collective Grip

The Pilot Collective Grip contains a variety of inputs including Searchlight control, Radio/ICS controls and SCAS heading controls.

1. Flare Jettison Switch and Cover
2. IZLID Switch
3. Engine Start Switch
4. Searchlight ON/OFF Switch
5. Channel Select Switch
6. Radio Select Switch
7. Searchlight Control Switch
8. Engine RPM Trim Switch
9. SCAS Heading Hold/Trim Switch
10. Throttle Idle Release Switch

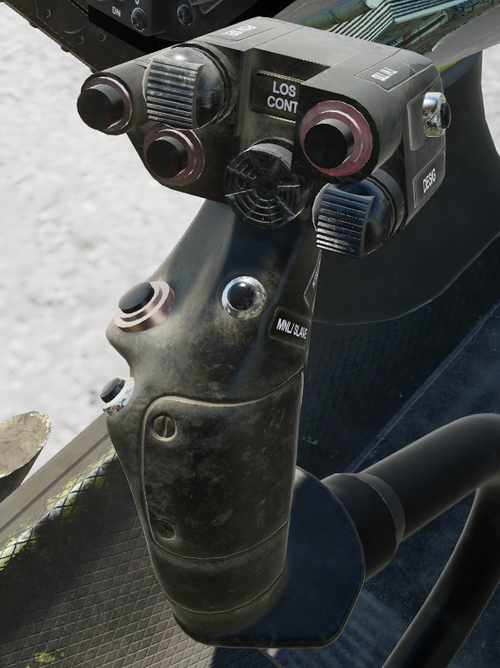

Copilot Cyclic Grip

The Copilot Cyclic Grip is primarily used for control of the Mast-Mounted Sight.

1. TV/TIS select/HOG BACK
2. MMS Frame Freeze/Target Select / HOG ON/OFF
3. NAV/Target Designate / HOG SCROLL BACKWARDS/ SCROLL FORWARD
4. LOS Slew Control
5. Manual/Slave
6. ICS/Radio Transmit (Trigger)
7. MMS Point track/ HOG Enter-Confirm (Pinky Switch)
8. SCAS Release
9. Trim Release
10. Area Track
11. Laser Fire
12. MMS FOV Select/ HOG LIST SELECT

Force Trim System

The Force Trim System is a magnetic brake system which holds the cyclic in position when activated. Force Trim does not affect the pedals or collective. Force Trim can be activated by the Force Trim Switch on the SCAS Control Panel, and can be interrupted using the Force Trim Interrupt Switch on the Pilot or Copilot Cyclic Grips to provide a new reference point.

Stability and Control Augmentation System

The Stability and Control Augmentation System (SCAS) is a flight control augmentation system that works in three channels – pitch, roll and yaw. SCAS improves flight handling qualities and reduces pilot workload by assisting desired response characteristics and damping external helicopter inputs. The system also includes a Heading Hold Mode (HHM).

SCAS Control Panel

The SCAS Control Panel contains controls for the SCAS and Force Trim System.

1. Force Trim ON/OFF
2. Hydraulic System ON/OFF
3. SCAS Pitch/Roll Engage Switch
4. SCAS Yaw Engage Switch
5. SCAS Power Switch
6. SCAS Test Button

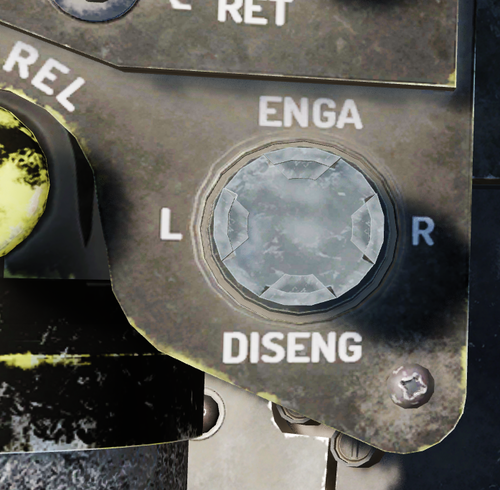

SCAS Heading Hold and Trim Hat

The SCAS Heading Hold and Trim Hat controls the Heading Hold Mode (HHM). The Heading Hold Mode provides a limited heading hold and heading trim functionality.

1. SCAS Heading Hold and Trim Hat.
2. UP: Engage Heading Hold Mode
3. DOWN: Disengage Heading Hold Mode
4. LEFT: Trim Helicopter Left
5. RIGHT: Trim Helicopter Right
